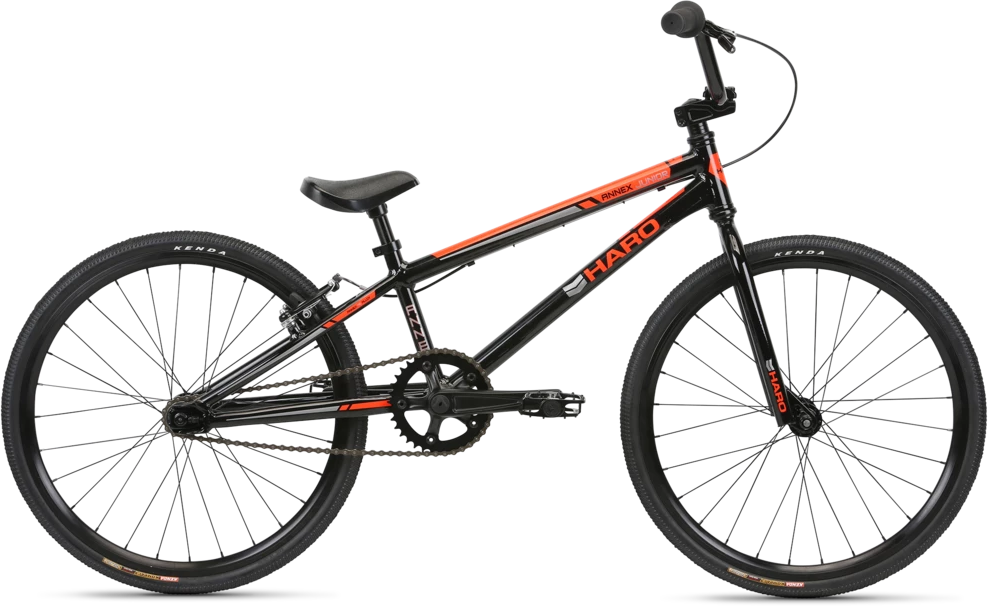

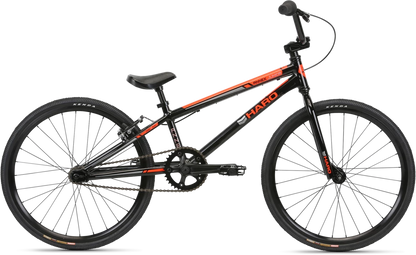

Haro Bikes Annex 24" Race 21.75" Black
Haro Bikes Annex 24" Race 21.75" Black
Couldn't load pickup availability
The Annex line offers a wide variety of sizes, and the next size up from the Mini is the Annex Junior. The Junior comes equipped with a 18.3" top tube,6061 alloy frame,and 155mm 3-piece alloy cranks appropriately sized for great handling and final drive ratio. Steering you in the right direction are a 100% chromoly fork coupled with alloy bars and a front-load alloy stem. Rounding out the package are 28-spoke alloy wheels, which are both fast and durable.
- 6061 series alloy frame with 3D dropouts with integrated chain tensioners
- 100% chromoly fork

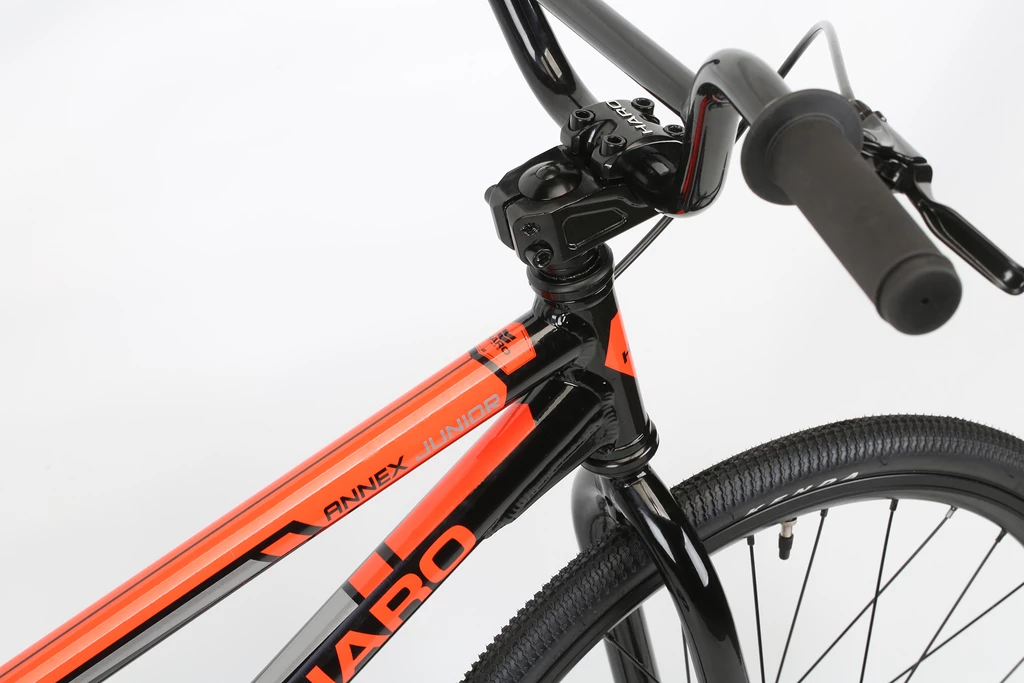

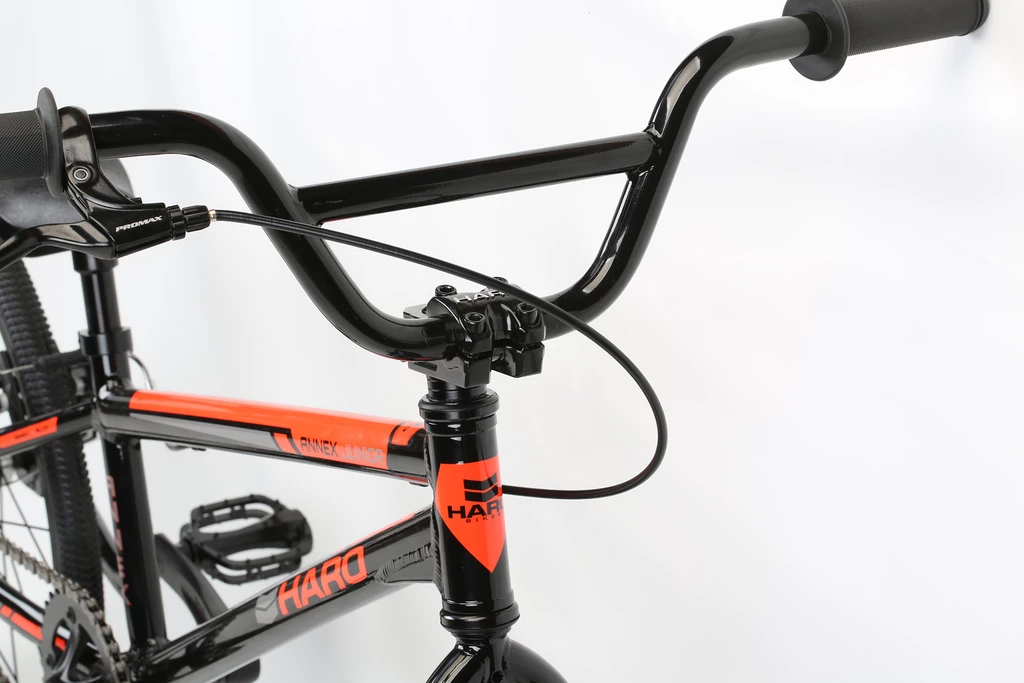

- Alloy bars and Haro alloy front-load stem

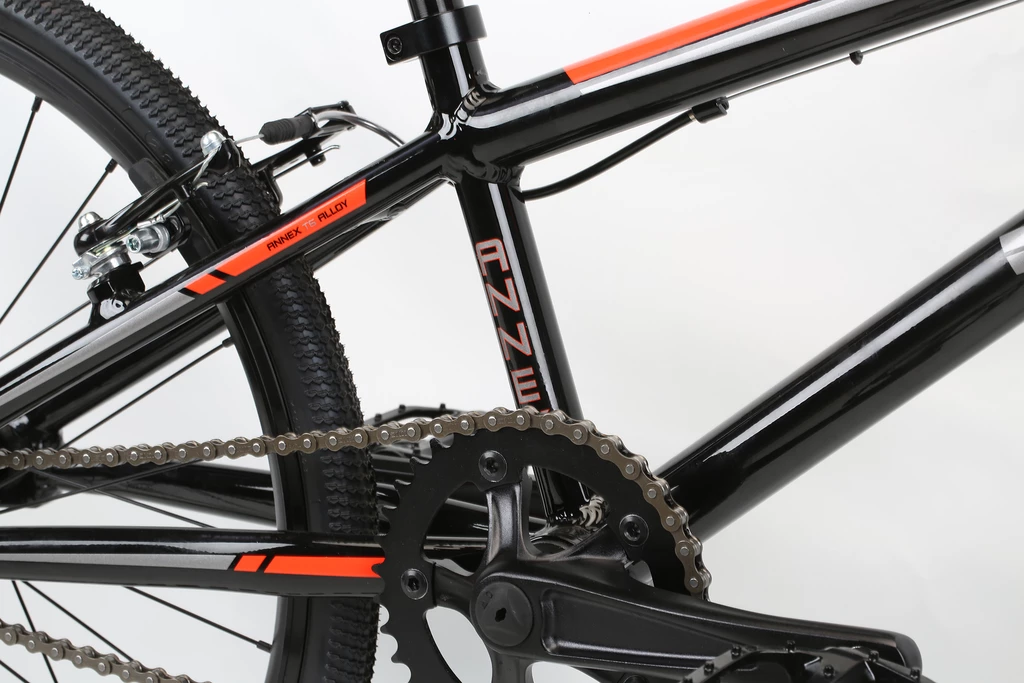

- Haro 3-piece alloy race cranks with sealed Euro BB
- 28-spoke wheels with 20" DA16 double-wall alloy rims

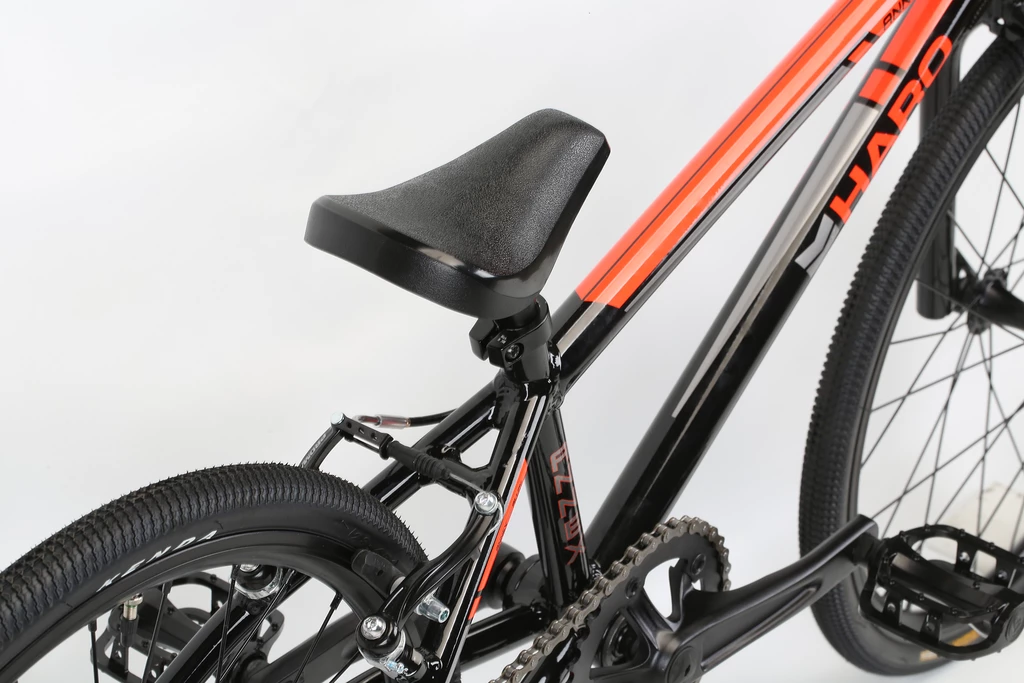

- Velo Unibody seat with built-in alloy post
- Kenda Kompact tires
- Promax V-Brake and lever
Specs
| Frame | 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners |
|---|---|
| Fork | Full Cr-Mo 1" Threadless |
| Headset | Threadless Loose Ball, 1" |
| Axles | 3/8" |
| Rims/Wheels | 20" Alloy 28h, Double-Wall |
| Hubs | Front: Alloy 28h, Loose Ball Rear: Alloy Flip-Flop 28h, Loose Ball |
| Tires | Kenda Kompact 20 x 1 1/8" |
| Crankset | 3-pc Alloy Race, 155mm |
| Chainrings | 36T Alloy |
| Bottom Bracket | Sealed Bearing Euro Square Taper |
| Chain | KMC 410 |
| Freewheel | 13T |
| Handlebars | Alloy Bar, 5" Rise |
| Tape/Grips | Mini Micro-Knurl Grips |
| Stem | Forged Alloy Top-Load, 45mm Ext. |
| Brake Levers | Promax XL-378 Alloy Lever |
| Brakes | Promax MV-87 Alloy V-Brake |
| Pedals | Mini DX Alloy, 9/16" |
| Saddle | Unibody |
| Seat Post | Alloy, 22.2mm |
